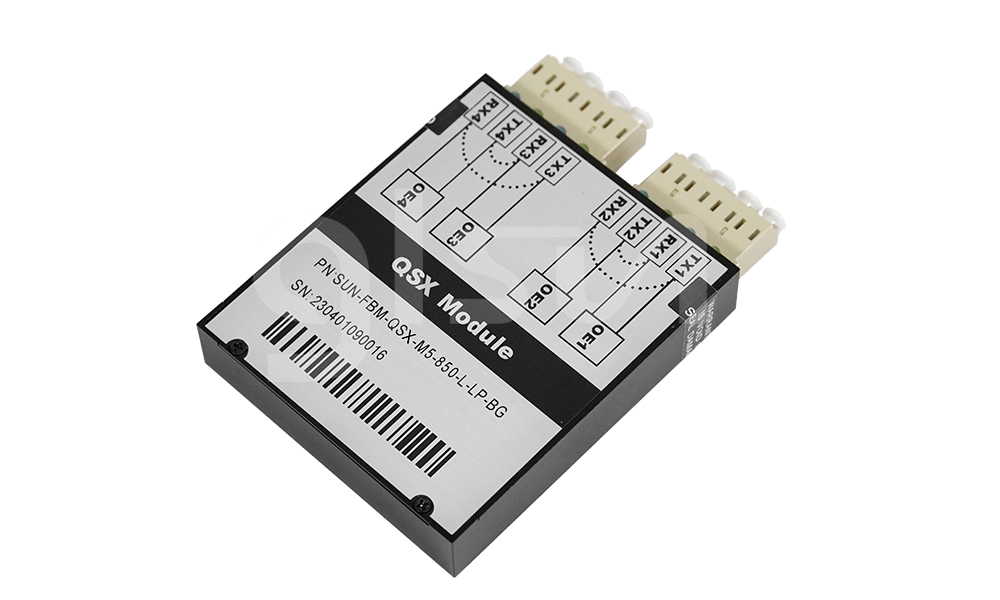

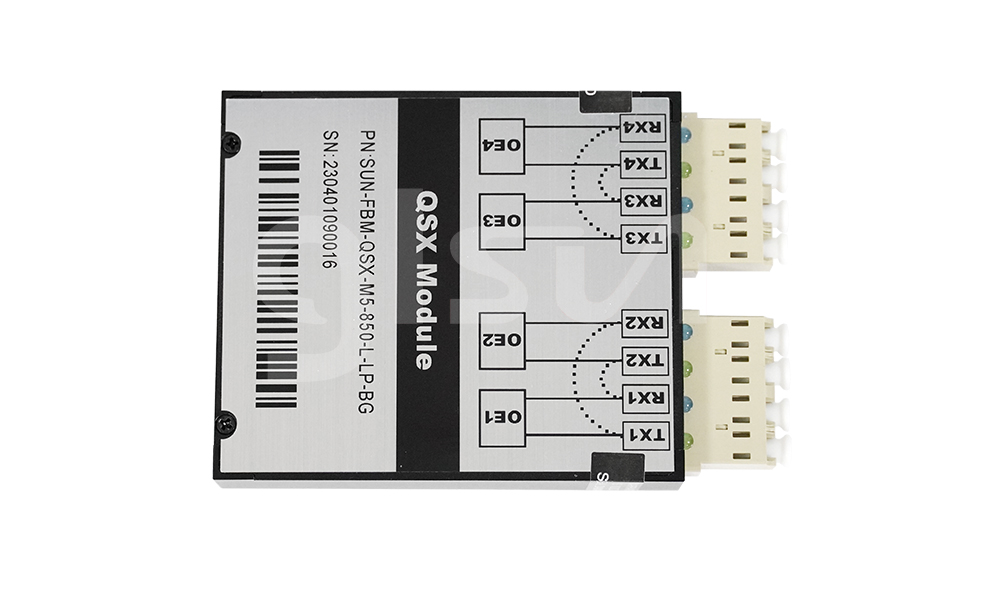

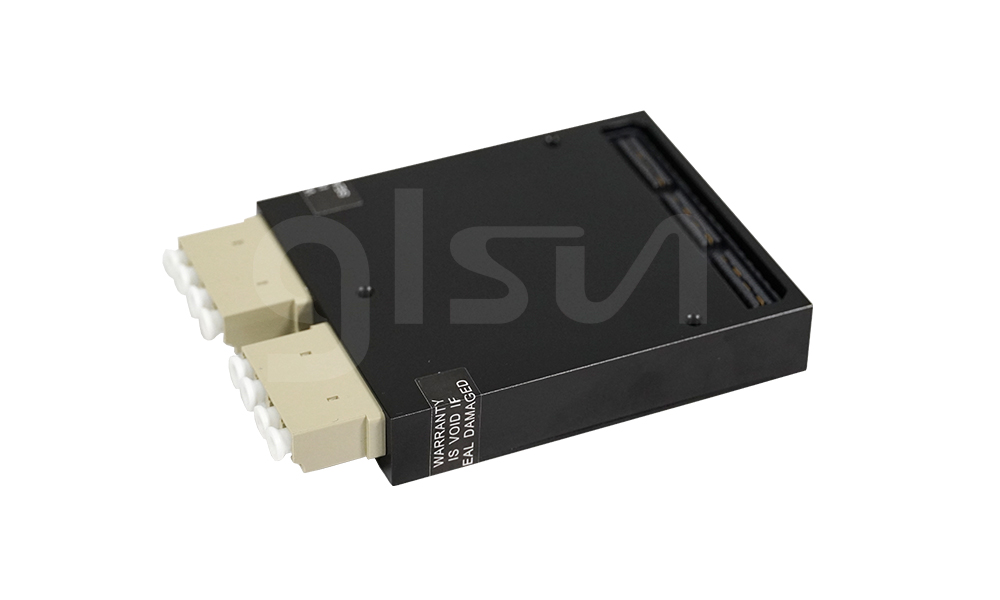

The QSX fiber bypass module is design expressly for Intrusion Prevention System (IPS) provides complete visibility to network traffic, it also introduces a point of failure should the IPS lose power, cable fail or application freeze. The module can support 1.25Gbit/s in full duplex mode per port of data transfer rate and Single-mode fiber operations.

The QSX fiber bypass modules designed to be compliant digital diagnostic monitoring function: Temperature, VCC, TX optical power, TX laser bias current, and RX received optical power.

The post-amplifier of the QSX fiber bypass module also includes a Loss of Signal (LOS) circuit that provides a TTL logic-high output when the received optical level is below a preset LOS Assert threshold.

Features
·Compliant with 1.25GBASE-SX
·Compliant with Fiber Channel 100-M5-SN-I and 100-M6-SN-I standard
·Laser Class 1 Product with comply with Requirements of IEC 60825-1 and IEC 60825-2
·EEPROM with Series ID Function
·+5V/+3.3V Power Supply and TTL Logic Interface
·LC Connector interface with optical Bypass Function
·LED indicate operation function

Applications
·In-line traffic Monitoring, Analyzing and Optimization
·Intrusion Prevention System
·Quality of Service
·In-line Security
·Load Balance
·Web Acceleration Appliances
